ZDJ9 Electric Switch Machine for Railway 380V 2.5-4.5 kN Force

  • ZDJ9 Electric Switch Machine for Railway 380V 2.5-4.5 kN Force
  • ZDJ9 Electric Switch Machine for Railway 380V 2.5-4.5 kN Force
  • ZDJ9 Electric Switch Machine for Railway 380V 2.5-4.5 kN Force
  • ZDJ9 Electric Switch Machine for Railway 380V 2.5-4.5 kN Force
  • ZDJ9 Electric Switch Machine for Railway 380V 2.5-4.5 kN Force
  • ZDJ9 Electric Switch Machine for Railway 380V 2.5-4.5 kN Force
Τόπος καταγωγής Chongqing, Κίνα
Μάρκα XRD
Ποσότητα παραγγελίας min 2
Τιμή $1,370-1,400

Επικοινωνήστε μαζί μου για δωρεάν δείγματα και κουπόνια.

ΤιAPP:0086 18588475571

σούφατ: 0086 18588475571

Skype: sales10@aixton.com

Αν έχετε οποιοδήποτε πρόβλημα, παρέχουμε 24ωρη ηλεκτρονική βοήθεια.

x
Λεπτομέρειες
Τάση ισχύος Τριφασική AC 380V/50Hz Εγκεφαλικά επεισόδια 220/170/150mm
Βαθμολογημένη δύναμη ρίψης 2,5 kN - 4,5 kN Μονοπάτι με τροχαία 28 ± 2KN
Χρόνος ρίψης ≤ 8s Ρεύμα εργασίας ≤ 2,0A
Αντίσταση μονής γραμμής ≤ 54Ω Μόνωση > 25mΩ
Η τάση μόνωσης αντέχει 50Hz Ατμοσφαιρική πίεση ≥70KPA (υψόμετρο που δεν υπερβαίνει τα 3000m)
Θερμοκρασία περιβάλλοντος -40 ℃～ +70 ℃ Σχετική υγρασία ≤ 90% (~ 25°C)
Διάρκεια ζωής 1 εκατομμύριο φορές κίνησης ρίψης (ή 15 χρόνια) Βάρος 140 κιλά
Επισημαίνω

ZDJ9 railway electric switch machine

,

380V railway track switch

,

2.5-4.5 kN force switch machine
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων
Excellent Performance Railway ZD9/ZDJ9 Series Electric Switch Machine
Product Attributes
Attribute Value
Purpose for retrofit/upgrade
Condition New
Type Electric Switch Machine
Material Steel
Dimensions (L x W x H) (mm) Customized
Product Name Electric Switch Machine
Power Voltage Three-phase AC 380V/50Hz
Strokes 220/170/150mm
Rated Throwing Force 2.5 kN - 4.5 kN
Trailable Force 28±2KN
Throwing Time ≤ 8s
Work Current ≤2.0A
Single-line Resistance ≤ 54Ω
Insulation Resistance >25MΩ
Insulation Voltage Withstand 50Hz
Product Images

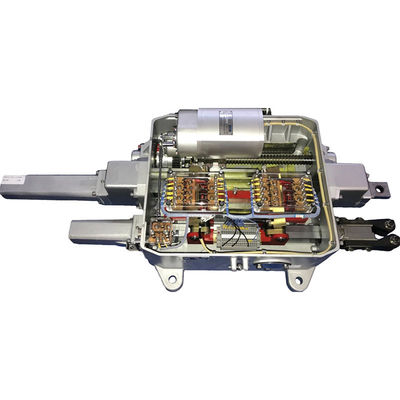

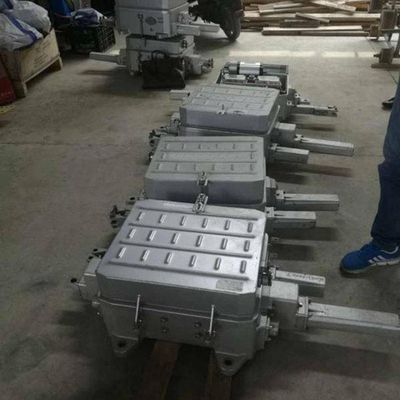

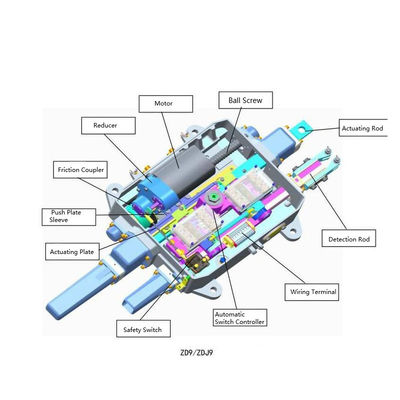

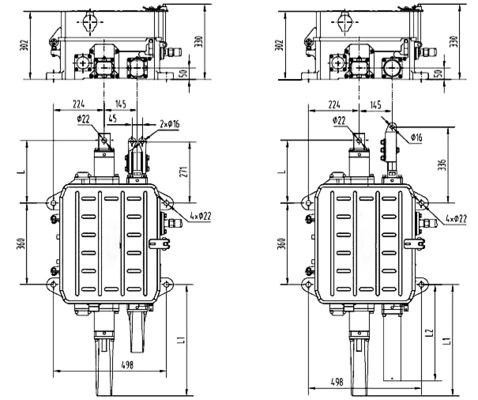

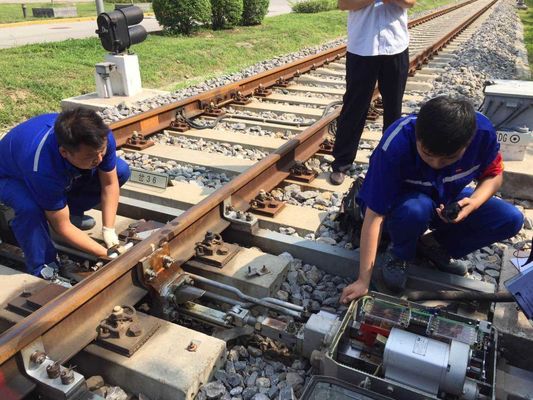

ZDJ9 Electric Switch Machine for Railway 380V 2.5-4.5 kN Force 0 ZDJ9 Electric Switch Machine for Railway 380V 2.5-4.5 kN Force 1 ZDJ9 Electric Switch Machine for Railway 380V 2.5-4.5 kN Force 2 ZDJ9 Electric Switch Machine for Railway 380V 2.5-4.5 kN Force 3 ZDJ9 Electric Switch Machine for Railway 380V 2.5-4.5 kN Force 4
Technical Specifications
Product Performance Reference Value
Power Voltage Three-phase AC 380V/50Hz
Strokes 220/170/150mm
Rated Throwing Force 2.5 kN - 4.5 kN
Trailable Force 28±2KN
Throwing Time ≤ 8s
Work Current ≤2.0A
Single-line Resistance ≤ 54Ω
Insulation Resistance ＞25MΩ
Insulation Voltage Withstand 50Hz
Protection Class IP54-IP67
Atmospheric Pressure ≥70KPa (altitude not exceeding 3000m)
Ambient Temperature -40℃～ +70℃
Relative Humidity ≤90%（25℃）
Service Life The point machine meets the requirement of 1 million times of throwing movement (or 15 years) under the condition of regular maintenance
Weight The whole machine weight about 140kg
Product Description
ZDJ9 series switch point machines are suitable for the setting, locking and indication of various railway switches. It can be used by single machine or multiple machines. It can be used for an internal-locking switch or an external-locking switch. ZDJ9 series point machines only refer to the structure and accessories installed in the housing which can complete the action of throw bar, pull-in conversion and lock, excluding installation device. Installation device is a set of parts for installing the point machine and connecting the point machine with the movable parts of the switch.
For the railway with the speed above 120kph, ZD9/ZDJ9 point machine shall be equipped with external locking device.
Additional Product Images

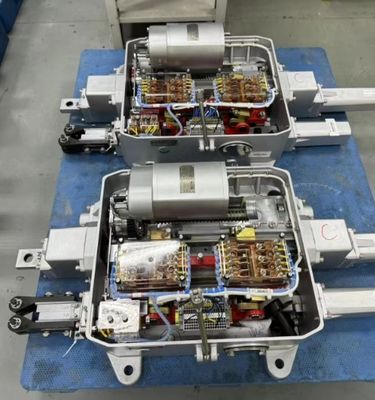

ZDJ9 Electric Switch Machine for Railway 380V 2.5-4.5 kN Force 5 ZDJ9 Electric Switch Machine for Railway 380V 2.5-4.5 kN Force 6 ZDJ9 Electric Switch Machine for Railway 380V 2.5-4.5 kN Force 7 ZDJ9 Electric Switch Machine for Railway 380V 2.5-4.5 kN Force 8 ZDJ9 Electric Switch Machine for Railway 380V 2.5-4.5 kN Force 9
About Chongqing XinRail Technology Co., Ltd.
Your Trusted Partner for Premium Track Accessories. We specialize in providing top-quality products and innovative solutions for the railway and rail transit industries. Since our inception, we've been dedicated to enhancing the efficiency and safety of track systems worldwide with reliable products and exceptional service.
Our Advantages
  • Superior Quality Control - Ensuring products meet the highest standards
  • Highly Competitive Prices - Get the best value for your investment
  • Cutting-Edge Technology - State-of-the-art products for modern living
  • Expert Team - Professional and passionate about lifestyle electronics
  • Seamless Communication - Smooth, responsive, and easy to work with
  • Effective OEM & ODM Services - Tailored solutions to meet your unique needs
Our Mission
Our mission is to advance the safety and efficiency of the rail transit industry by providing excellent track accessories and services. We are dedicated to being a reliable partner for our clients, together facing future challenges and opportunities.
Please feel free to contact us for more information. We look forward to working with you and contributing to the development of the rail transit industry!
Company Images
ZDJ9 Electric Switch Machine for Railway 380V 2.5-4.5 kN Force 10 ZDJ9 Electric Switch Machine for Railway 380V 2.5-4.5 kN Force 11 ZDJ9 Electric Switch Machine for Railway 380V 2.5-4.5 kN Force 12 ZDJ9 Electric Switch Machine for Railway 380V 2.5-4.5 kN Force 13
Frequently Asked Questions
What are the main factors to consider when selecting track accessories?
When selecting track accessories, key factors include: Compatibility: Ensure the accessories match the specifications of your existing track system. Quality Standards: Look for products that meet international quality and safety standards. Durability: Consider the environmental conditions and load requirements to choose durable materials. Cost-effectiveness: Balance cost with the long-term performance and maintenance requirements of the accessories.
How do you ensure the quality of your products?
We ensure product quality through: Rigorous Testing: All products undergo thorough testing and quality control procedures. Certified Manufacturers: We source our products from internationally recognized manufacturers with proven track records. Compliance: Our products comply with industry standards and regulations to guarantee performance and safety.
Can you provide customized solutions for specific projects?
Yes, we offer customized solutions tailored to specific project requirements. Our team of experts can work with you to understand your needs and provide tailored products and solutions to meet your project's specifications.
Do you offer technical support and after-sales service?
Yes, we provide comprehensive technical support and after-sales service. Our team is available to assist with installation, maintenance, and troubleshooting to ensure the optimal performance of our products.
Do you ship internationally?
Yes, we offer international shipping to a wide range of countries. Shipping costs and arrangements will be provided based on the destination and order details.
